A2 Steel Frame Stone Wool Acrylic Brick Slip System

The Wetherby Direct Fix Steel Frame System has been developed to allow installation of A-rated Wetherby systems to a sheathed steel frame substrate. The direct fix application allows the system to be directly mechanically fixed with adhesive (where required) removing the need for a cavity and the cavity fire-stopping behind the A1 Stone Wool insulation. Suitable for use on a variety of project types such as schools, student accommodation and high-rise reclad projects, the system has proven incredibly popular since its launch in 2022.

Our Stone Wool Acrylic Brick Slip system emulates traditional brickwork with its lightweight, durable design. Crafted from quartz sand and acrylic resin, these slips offer flexibility and achieve an A2-s1,d0 fire rating to BS EN 13501-1 when paired with a Wetherby Stone Wool insulation system.

View brochure Contact us

Watch the Wetherby Stone Wool Acrylic Brick Slip System in action…

You’ll unearth a treasure trove of expertise right at your fingertips by visiting our channel and hitting that subscribe button.

Acrylic Brick Slip Colours

10 Standard brick colour options & many other colours available on request.
3-4 week lead time | Min. Order 60m2

2069 – Pisa

3004 – Trento

3102 – Asti

3103 – Verona

5016 – Bronte

3123 – Olbia

6006 – Monopoli

6106 – Como

6115 – Vicenza

sc.6039 – Brindisi

Adhesive Mortar Colours Options

Wetherby adhesive mortars are available in a selection of complimentary colours, below is a selection of colours available, download our acrylic brick slip brochure to review the full colour range.

White

Light Beige

Beige

Light Grey

Grey

Anthracite

Steel Frame Systems Systems Brochure

Download Our Steel Frame Systems Systems Brochure

Download

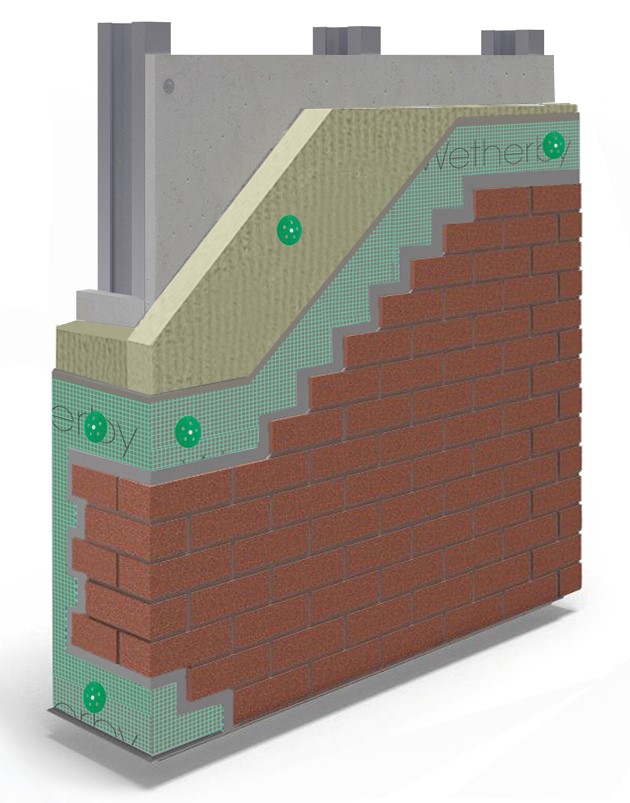

Components of the Stone Wool Acrylic Brick Slip System

Benefits of our Stone Wool Acrylic Brick Slip System

The Stone Wool Acrylic Brick Slip System is a revolutionary solution, designed to elevate your projects. This advanced insulation system provides many benefits going beyond traditional methods, offering unmatched performance, sustainability, and cost-effectiveness.

Classic Brick Appearance

Available in a Variety of Colours

Suitable for high-rise buildings – No height restrictions

Flexible – Suitable for curved substrates

Impact Resistant

Quick to Install

Lightweight

Technical Information

Specifying an External Wall Insulation system that is suitable for your project can be a challenging practice. Our technical team are on hand to provide detailed job specific specifications and any technical assistance you may require.

Fire Classification
Design Life
Impact Resistance
Hygrothermal / Freeze / Thaw Testing
Sheathing Board
Stone Wool Thermal Values Conductivity
Lambda value
Thicknesses Available
Finish Options

A2-s1,d0 to EN 13501-1
30 years
Category I
Pass
Fibre Cement Board (BS EN 12467)
CPB (BS EN 12467 / BS EN 634-2)
Ply (BS EN 313-1)
OSB (BS EN 300)
0.036 W/(m²k)
50mm+ = 0.036
30-40mm = 0.038
30mm – 250mm
Available in a variety of colours

The information contained within this website is intended for general guidance only. To obtain the most accurate and up-to-date design solutions tailored to your specific needs, please contact the Wetherby team directly.

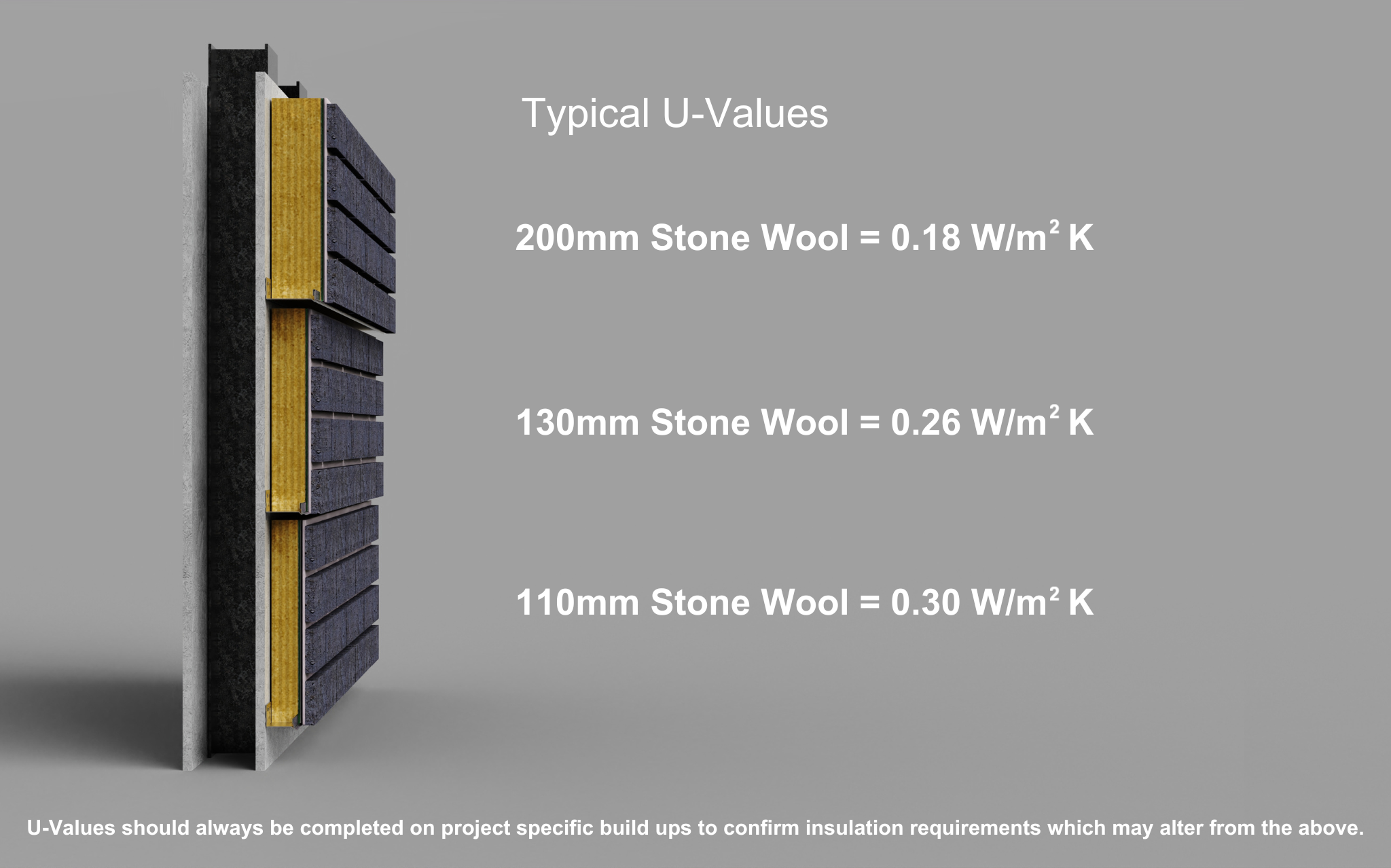

Typical U-Values

Wetherby Stone Wool insulation offers a 0.036 W/(mK) K value, requiring just 100mm thickness to meet UK refurbishment property U-value standards in the majority of cases.

Technical Data

Product Information

At the core of our Stone Wool Silicone Render system lies Rockwool insulation, providing outstanding thermal performance, unparalleled breathability and superior acoustic properties in comparison with other insulants on the market. Stone Wool is classified as A1 non-combustible as an individual product.

Outstanding thermal and acoustic properties
Non combustible
Easily cut and shaped
Can be installed to flat & curved surfaces
Open cell structure allows the façade to breath

Wetherby Acrylic Brick Slips made from high-quality quartz sand and acrylic resin, which provides excellent flexibility. When used in a Wetherby certified system, they offer a minimum
30-year life expectancy and Category 1 impact resistance providing a robust finish.

Professional-grade, authentic brick finish
Durable Design
Moldable around curved substrates
Cost Effective
Lightweight
