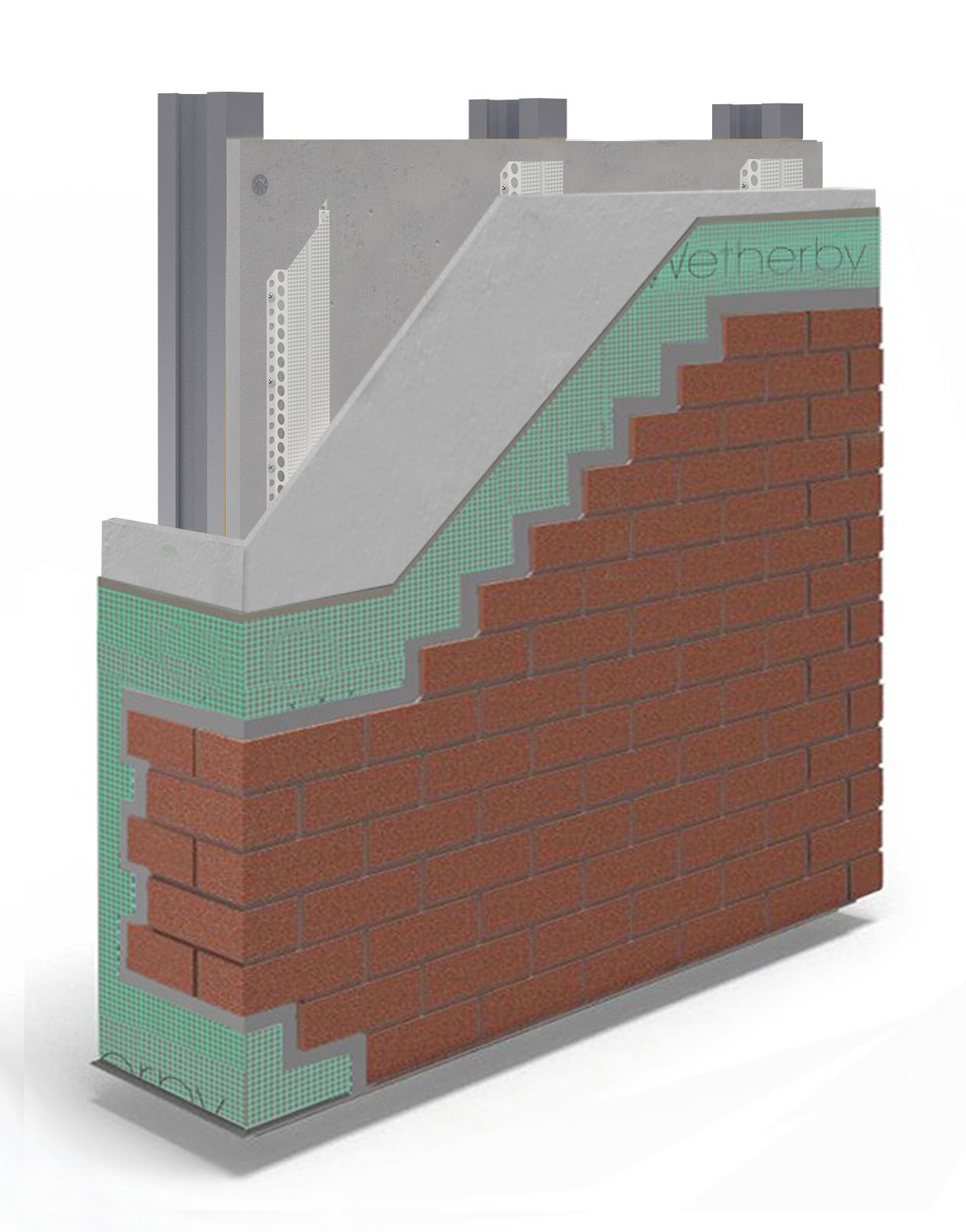

A1 Steel Frame Carrier Board Brick Slip System

Wetherby Carrier Boards are primarily designed to provide steel frame structures with a rendered or brick finish where U-values are already achieved within the framed substrate. The A1 Wetherby Carrier Board can be fixed to either metal Wetherby cavity rails or timber battens to create a protective cavity behind the non-combustible board.

Carrier board systems provide a high impact, durable and aesthetically pleasing façade whilst taking up minimal space, using the minimum 15mm Wetherby Cavity Rail means the full system is less than 50mm in depth.

The Brick Slip Carrier Board system achieves an A1 non-combustible fire rating to BS EN 13501-1, allowing installation to projects of any height. The unique Wetherby RagRail is available in multiple sizes and helps to simplify installation, ensuring exceptional flexibility in design options.

View brochure Contact us

Watch the Steel Frame Carrier Board Brick Slip System in action…

You’ll unearth a treasure trove of expertise right at your fingertips by visiting our channel and hitting that subscribe button.

Colour Availability

Wetherby clay brick slips offer the appearance of real brick, without the high costs and lengthy installation times associated with traditional brick builds, available in 7mm, 9mm or 15mm options.

Featured below is a small sample of colours available, more examples can be found on our Clay Brick Slip System Brochure below.

7mm Colour Option

2421rs – Anoreta

2459hl – Laguna

2426 – Parador

2404 – Almenara

2421 – Estepona* Min Order 700m2

2420sw – Coruna* Min Order 700m2

9mm Colour Options

100 – White Smooth* Min Order 1000m2

220 – Terracotta Smooth* Min Order 1000m2

228 – Golborne* Min Order 1000m2

286 – Weathered Buff* Min Order 1000m2

287 – Canela* Min Order 1000m2

15mm Colour Options

7404L – Almenara

63413g – Merida Grey

7426 – Parador

7425n – Terramar

7421rs – Anoreta

7427 – Penina

Pointing Mortar Colour Options

Wetherby pointing mortars are available in a selection of complimentary colours for below is a selection of colours available, download our brick slip brochure to review the full colour range.

Sandstone Brick Slip

Natural Pointing Mortar

Dark Grey Pointing Mortar

Dark Brown Pointing Mortar

Buff Pointing Mortar

Black Pointing Mortar

Clay Brick Slip System Brochure

Download

Components of the Steel Frame Carrier Board Brick Slip System

Benefits of our Steel Frame Carrier Board Brick Slip System

The Cavity Rail Carrier Board System is a revolutionary solution, designed to elevate your projects. This advanced system provides many benefits going beyond traditional methods, offering unmatched performance, sustainability, and cost-effectiveness.

Available in a Variety of Colours

Space Saving

Easy To Install

Classic Brick Appearance

A1 Fire Rating

Technical Information

Specifying a carrier board system that is suitable for your project can be a challenging practice. Our technical team are on hand to provide detailed job specific specifications and any technical assistance you may require.

Fire Classification
Design Life
Impact Resistance
Hygrothermal / Freeze / Thaw Testing
Sheathing Board
Cavity Options
Carrier Board
Carrier Board Dimensions
Finish Options

A1 to EN 13501-1
30 years
Category I
Pass
Fibre Cement Board (BS EN 12467)
CPB (BS EN 12467 / BS EN 634-2)
Ply (BS EN 313-1)
OSB (BS EN 300)
WBS RagRail – Metal Cavity Spacer Rail
Timber Batten – Low Rise Only
A1. Manufactured to BS EN 12467
Independently Certified
12mm X 1200mm X 2400mm
Available in a wide a range of colours and thicknesses

The information contained within this website is intended for general guidance only. To obtain the most accurate and up-to-date design solutions tailored to your specific needs, please contact the Wetherby team directly.

Technical Data

Technical Drawing Set

Download

Operations & Maintenance Manual

Our O&M mauals are currently being updated. To request the latest version contact; Technical Helpline 0800 1073299 or technical@wall-systems.co.uk

KIWA Certificate BAW-23-280-S-A-UK

Download

Specification with NBS

NBS Source

Product Information

A versatile and innovative board revolutionising construction practices across various applications. As a one-board multi-application solution. it can be used as a carrier board for Wetherby finishes or as an exceptionally strong sheathing board behind Wetherby systems.

A1 non-combustible
Exceptional strength
Excellent pull-out resistance
Score and snap capability
Can also be used as a sheathing board
Superb racking strength

Wetherby Brick Slip Systems stand out as a game-changer, particularly in scenarios where real brick usage is unfeasible or impractical. The brick slips are manufactured in the same way as real brick providing an identical finish, attaining A1 properties. Brick slip ‘pistol’ corners are manufactured as corners, with no visible joints, ensuring a real brick appearance across a façade.

Professional-grade, authentic brick finish
Enhanced precision and alignment
Exceptional impact resistance & adhesion properties
A1 fire rated
