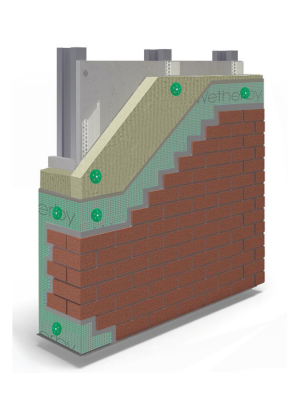

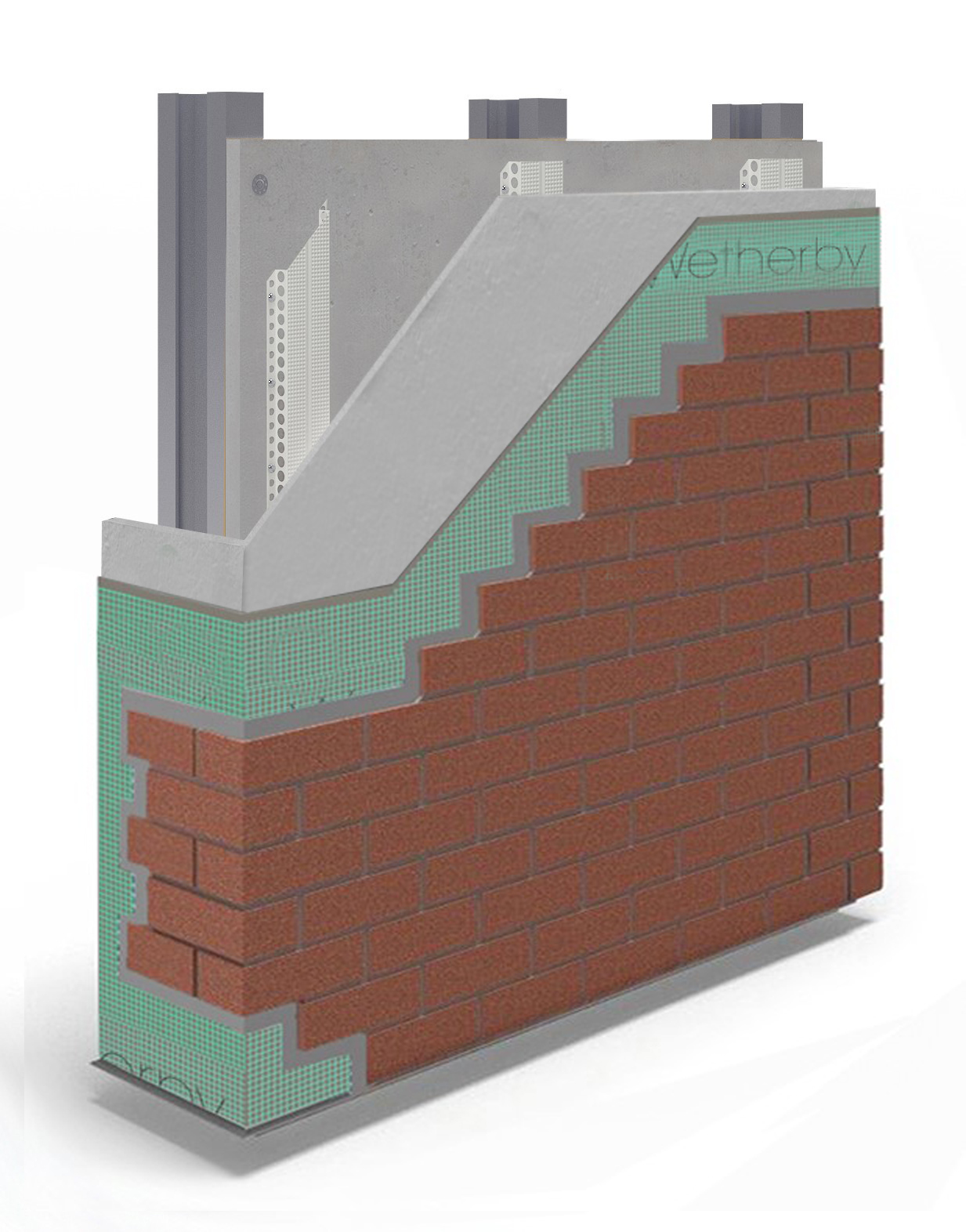

A2 Steel Frame Carrier Board Acrylic Brick Slip System

Wetherby Carrier Boards are primarily designed to provide steel frame structures with a rendered or brick finish where U-values are already achieved within the framed substrate. The A1 Wetherby Carrier Board can be fixed to either metal Wetherby cavity rails or timber battens to create a protective cavity behind the non-combustible board.

Carrier board systems provide a high impact, durable and aesthetically pleasing façade whilst taking up minimal space, using the minimum 15mm Wetherby Cavity Rail means the full system is less than 40mm in depth.

The Acrylic Brick Slip Carrier Board system achieves an A2-s1,d0 fire rating to BS EN 13501-1, allowing installation to projects of any height. The unique Wetherby RagRail is available in multiple sizes and helps to simplify installation, ensuring exceptional flexibility in design options.

View brochure Contact us

Watch the Steel Frame Carrier Board Acrylic Brick Slip System in action…

You’ll unearth a treasure trove of expertise right at your fingertips by visiting our channel and hitting that subscribe button.

Acrylic Brick Slip Colours

10 Standard brick colour options & many other colours available on request.
3-4 week lead time | Min. Order 60m2

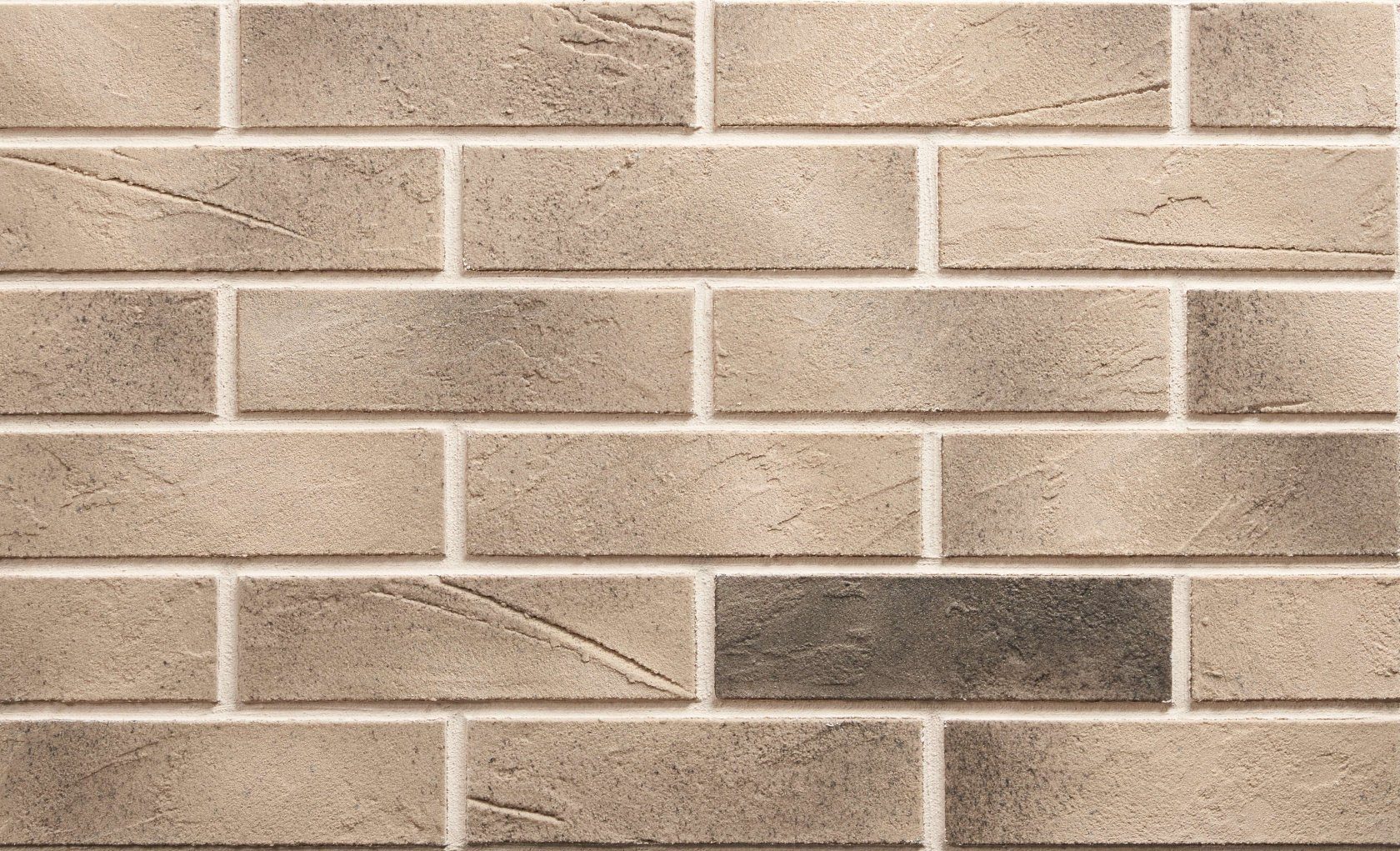

2069 – Pisa

3004 – Trento

3102 – Asti

3103 – Verona

5016 – Bronte

3123 – Olbia

6006 – Monopoli

6106 – Como

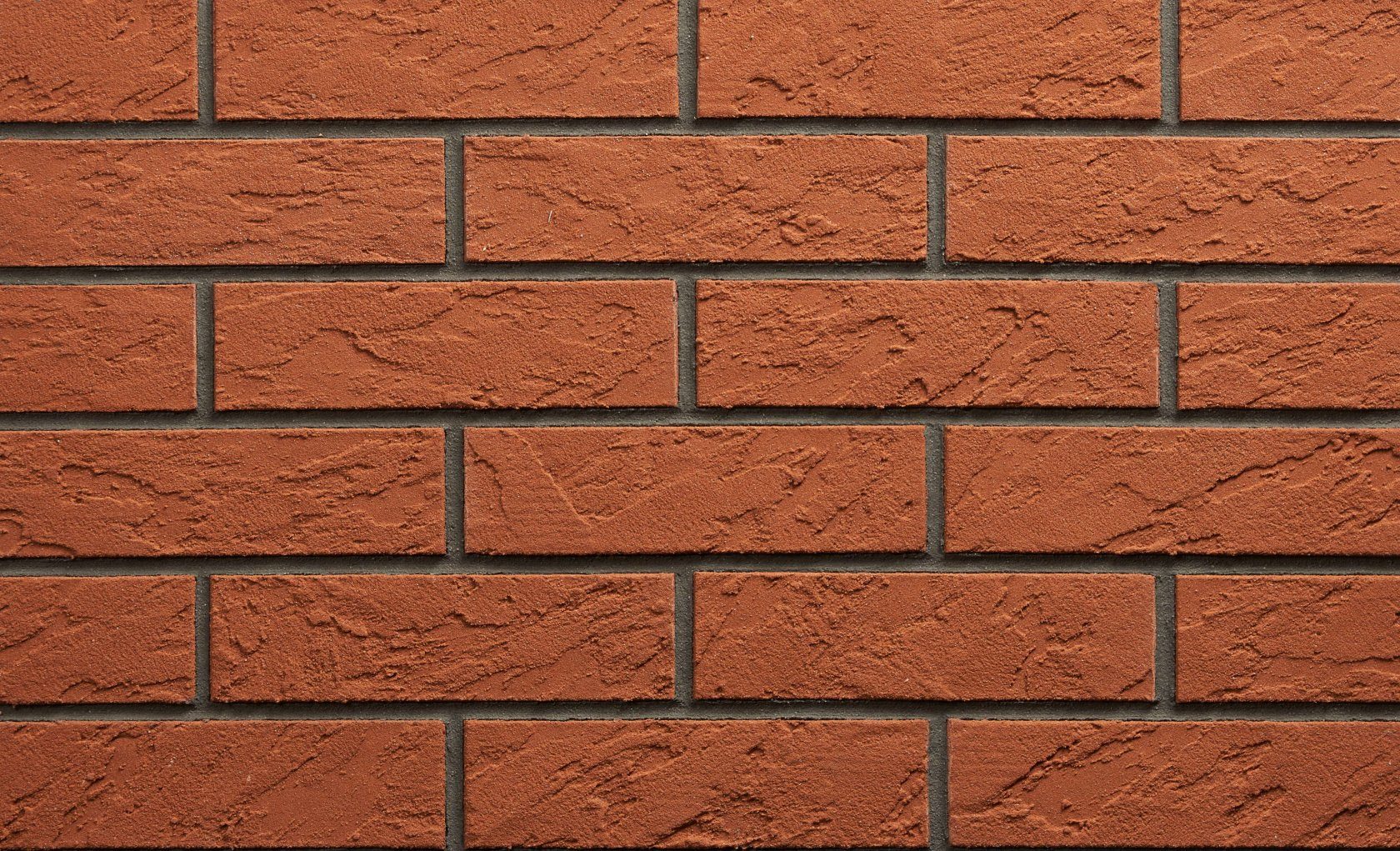

6115 – Vicenza

sc.6039 – Brindisi

Adhesive Mortar Colours Options

White

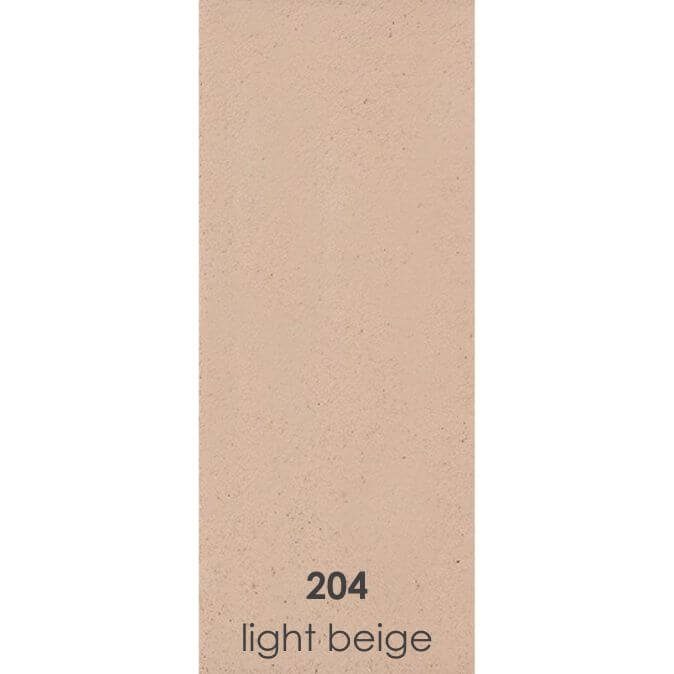

Light Beige

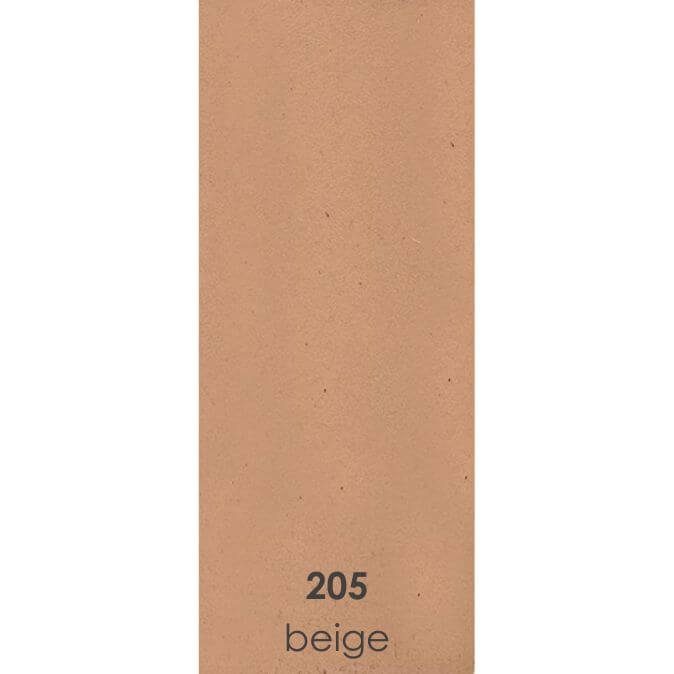

Beige

Light Grey

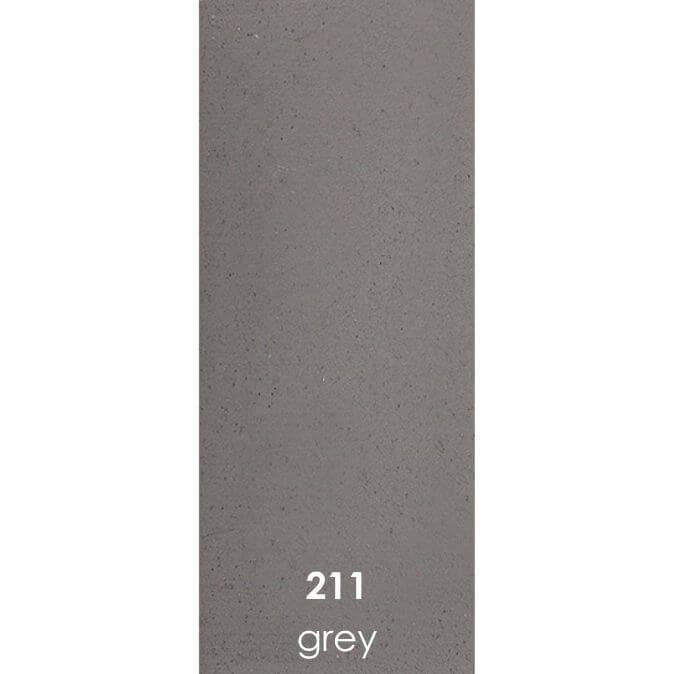

Grey

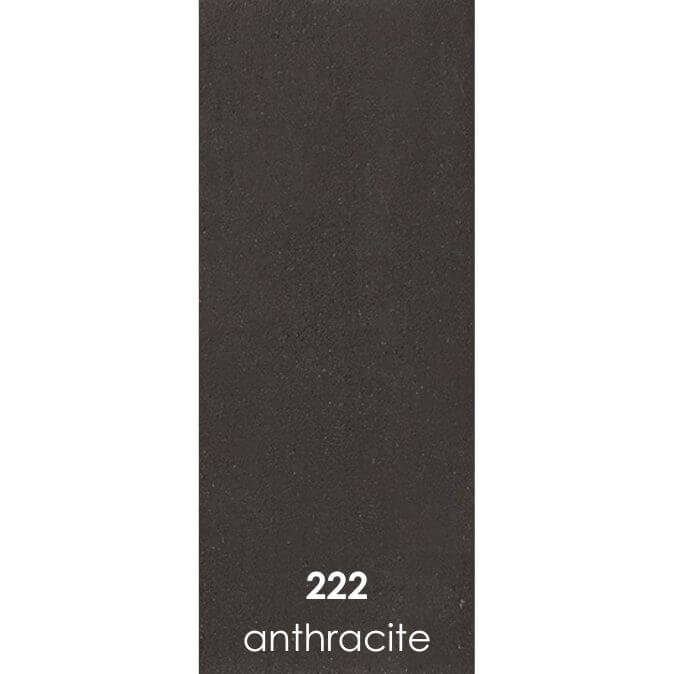

Anthracite

Acrylic Brick Slip Systems

Discover more about the Wetherby Acrylic Brick Slip Systems

Download

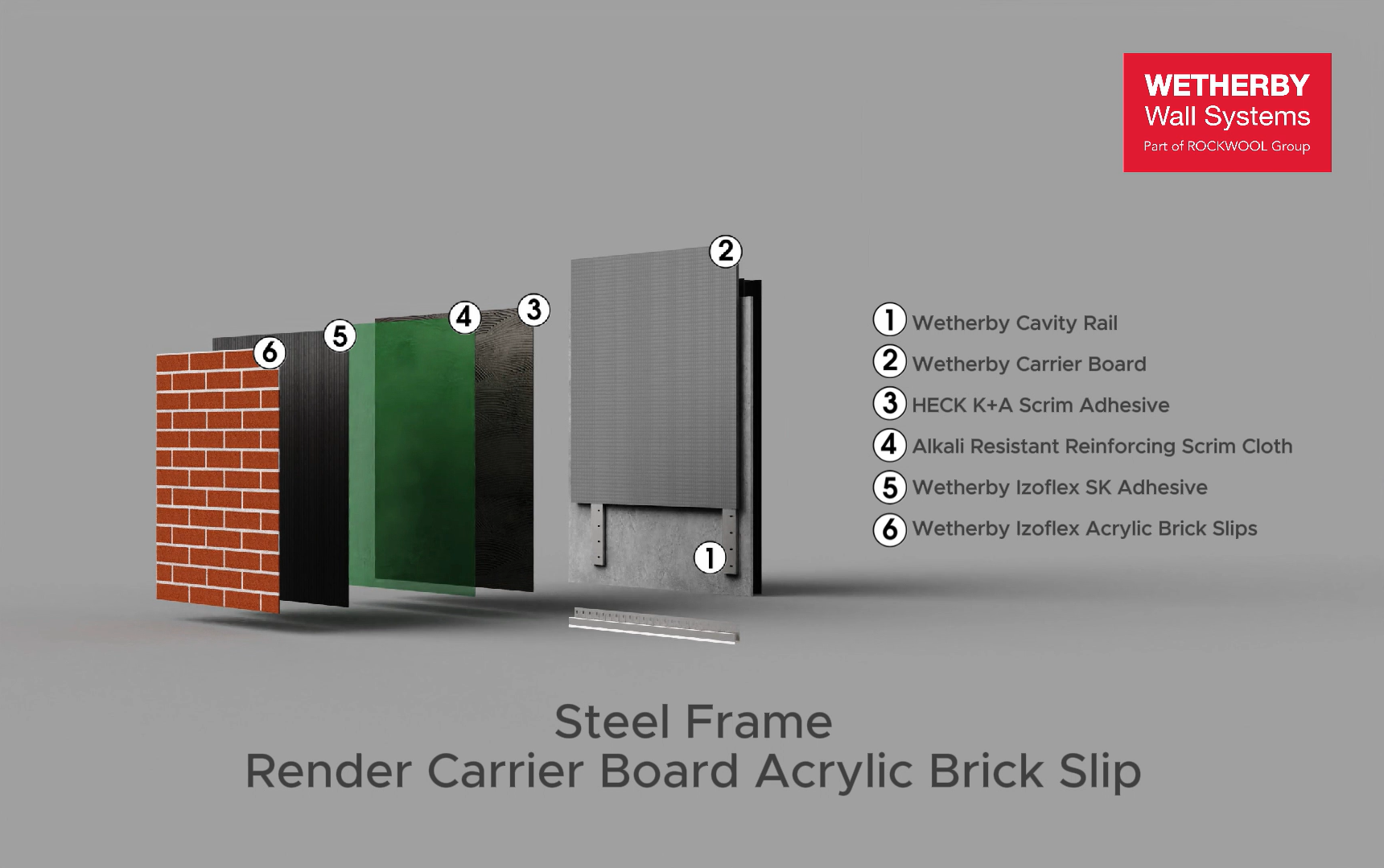

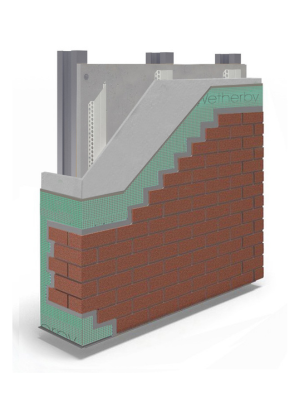

Components Steel Frame Carrier Board Acrylic Brick Slip System

Benefits of our Steel Frame Carrier Board Acrylic Brick Slip System

The Cavity Rail Carrier Board System is a revolutionary solution, designed to elevate your projects. This advanced system provides many benefits going beyond traditional methods, offering unmatched performance, sustainability, and cost-effectiveness.

Available in a Variety of Colours

Space Saving

Easy To Install

A2 Fire Rating

Classic Brick Appearance

Technical Information

Specifying a carrier board system that is suitable for your project can be a challenging practice. Our technical team are on hand to provide detailed job specific specifications and any technical assistance you may require.

Fire Classification
Design Life
Impact Resistance
Hygrothermal / Freeze / Thaw Testing
Sheathing Board
Cavity Options
Carrier Board
Carrier Board Dimensions
Finish Options

A2-s1, d0 to EN 13501-1
30 years
Category I
Pass
Fibre Cement Board (BS EN 12467)
CPB (BS EN 12467 / BS EN 634-2)
Ply (BS EN 313-1)
OSB (BS EN 300)
WBS RagRail – Metal Cavity Spacer Rail
Timber Batten – Low Rise Only
A1. Manufactured to BS EN 12467
Independently Certified
12mm X 1200mm X 2400mm
Available in a wide a range of colours

The information contained within this website is intended for general guidance only. To obtain the most accurate and up-to-date design solutions tailored to your specific needs, please contact the Wetherby team directly.

Technical Data

Technical Drawing Set

Download

Operations & Maintenance Manual

Our O&M manuals are currently being updated. To request the latest version contact; Technical Helpline 0800 1073299
or technical@wall-systems.co.uk

KIWA Certificate BAW-23-280-S-A-UK

Download

Specification with NBS

NBS Source

Product Information

A versatile and innovative board revolutionising construction practices across various applications. As a one-board multi-application solution. it can be used as a carrier board for Wetherby finishes or as an exceptionally strong sheathing board behind Wetherby systems.

A1 non-combustible
Exceptional strength
Excellent pull-out resistance
Score and snap capability
Can also be used as a sheathing board
Superb racking strength

Wetherby Acrylic Brick Slips made from high-quality quartz sand and acrylic resin, which provides excellent flexibility. When used in a Wetherby certified system, they offer a minimum
30-year life expectancy and Category 1 impact resistance providing a robust finish.

Professional-grade, authentic brick finish
Durable Design
Moldable around curved substrates
Cost Effective
Lightweight
